I am trusting these
guys to do my engine work. If you know anything about me it says
something about them.
e-mail:
proformfed@yahoo.com phone:
585-288-1499 |
 |

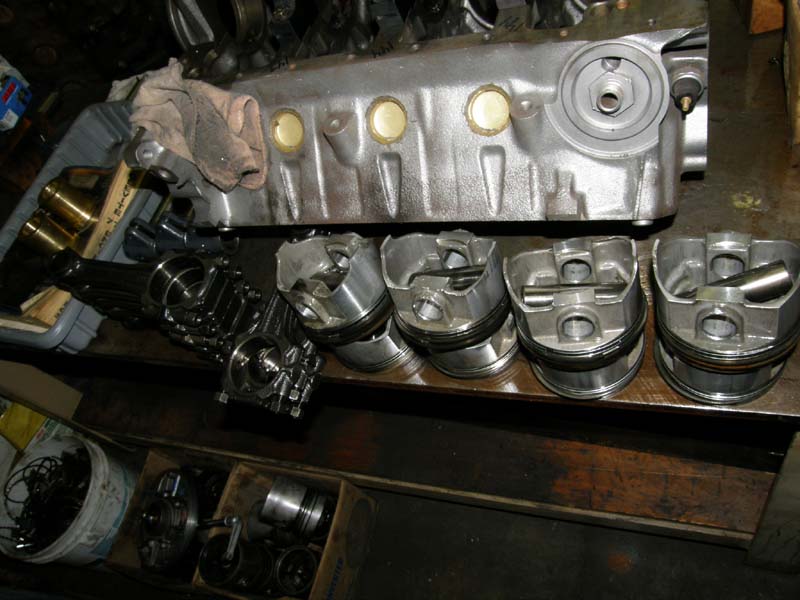

Pistons found in the block were forged. They will be reused. |
|

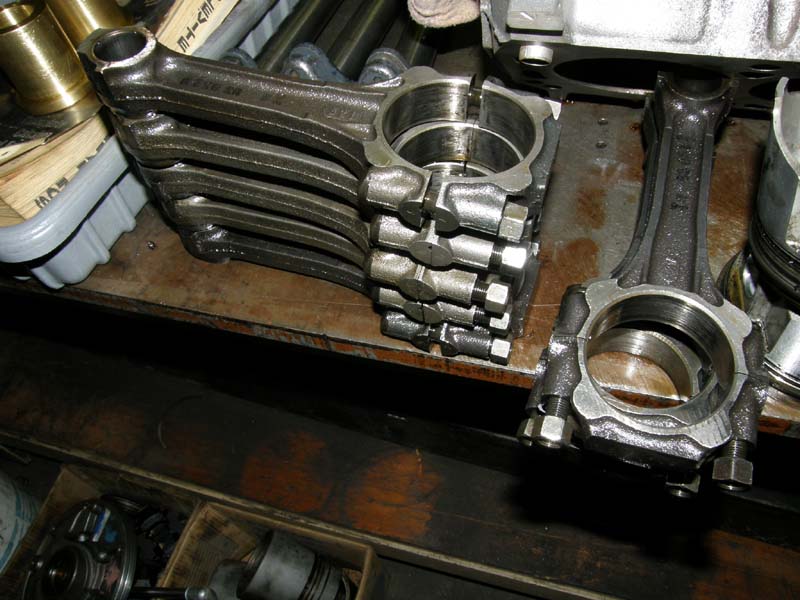

Rods were stock units. We wanted to
use Eagle Forged "H" beam rods buth they are on national back order
until the end of January. We settled for Forged "I" beam rods. They
were ordered, did show up, called the vendor, they say they were
never ordered. They have been ordered now for a second time. |
 |

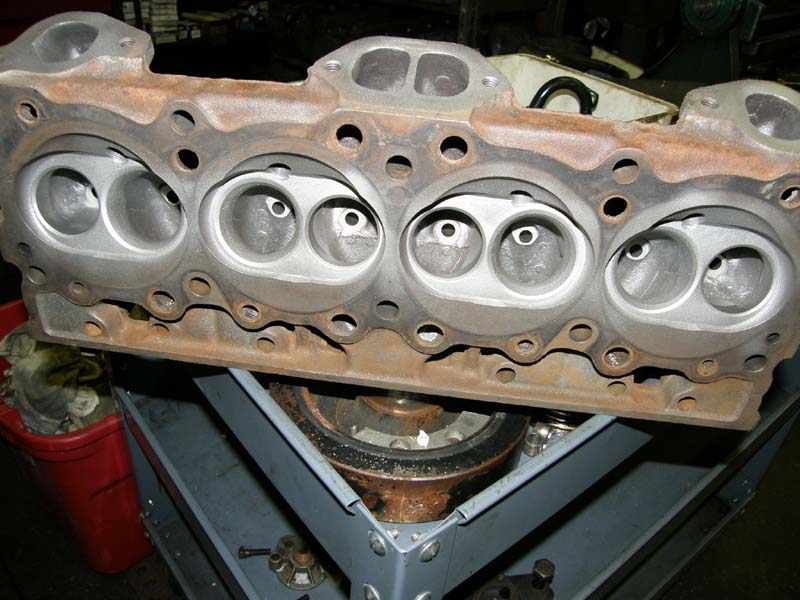

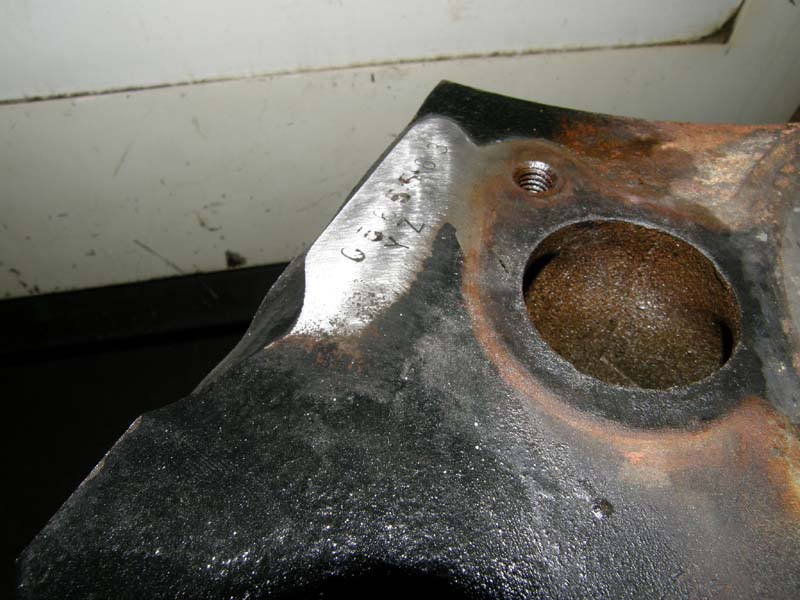

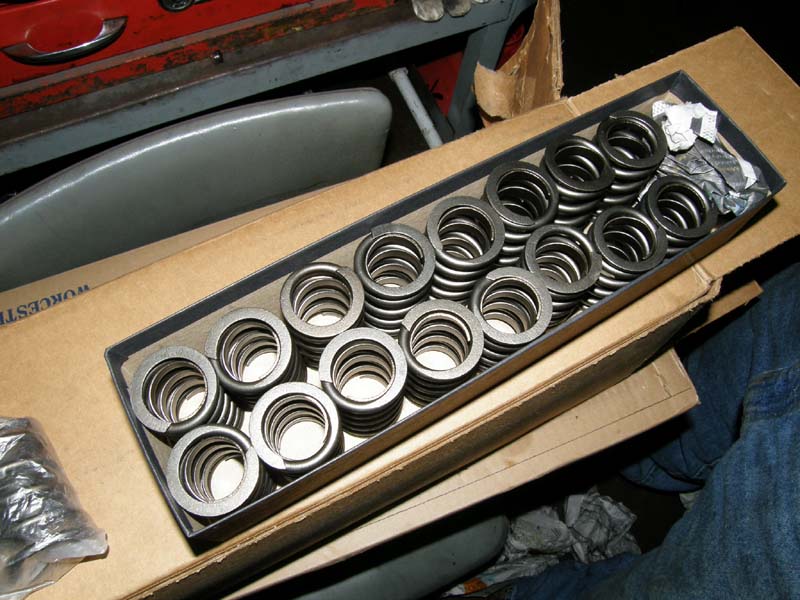

Head work has been started,
chambers will be modified as suggested in Jim Hand's book, new
valves, springs rockers (also solid roller cam). |
|

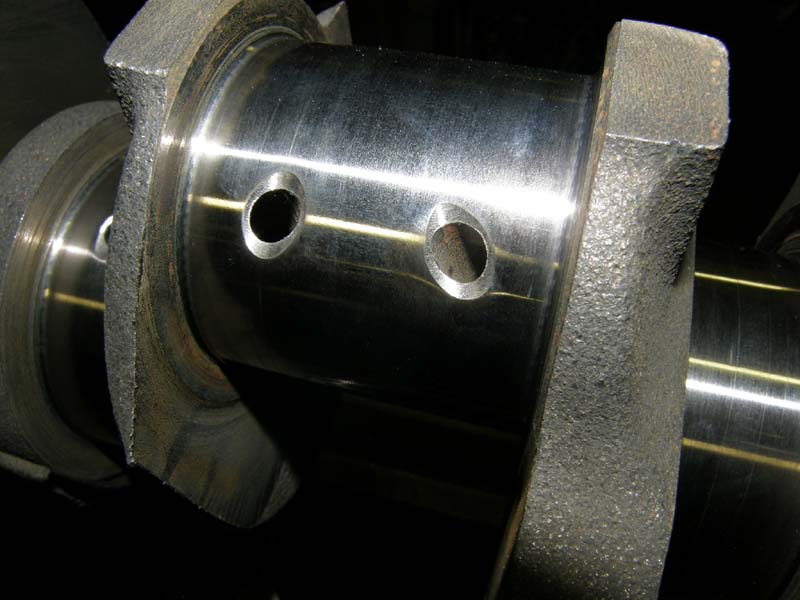

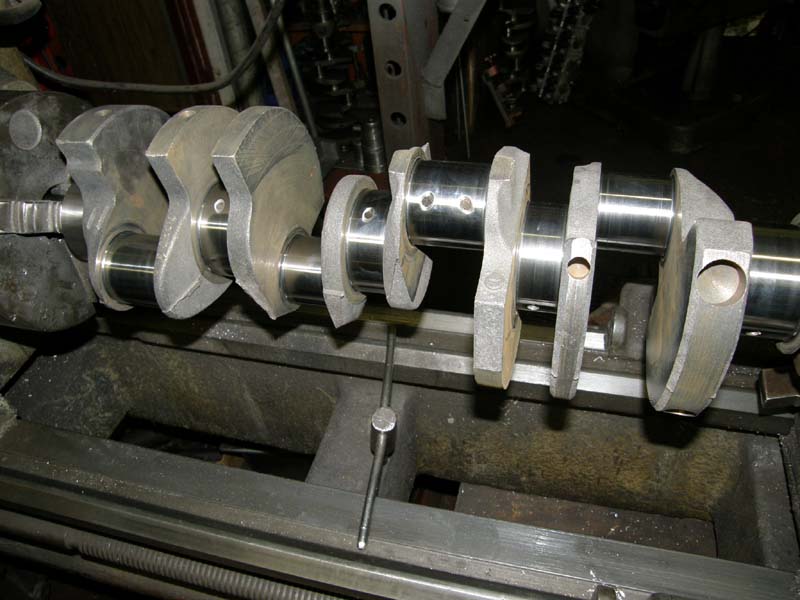

It Crank will be micro polished. Balanced. |
 |
|
 |
 |
 |

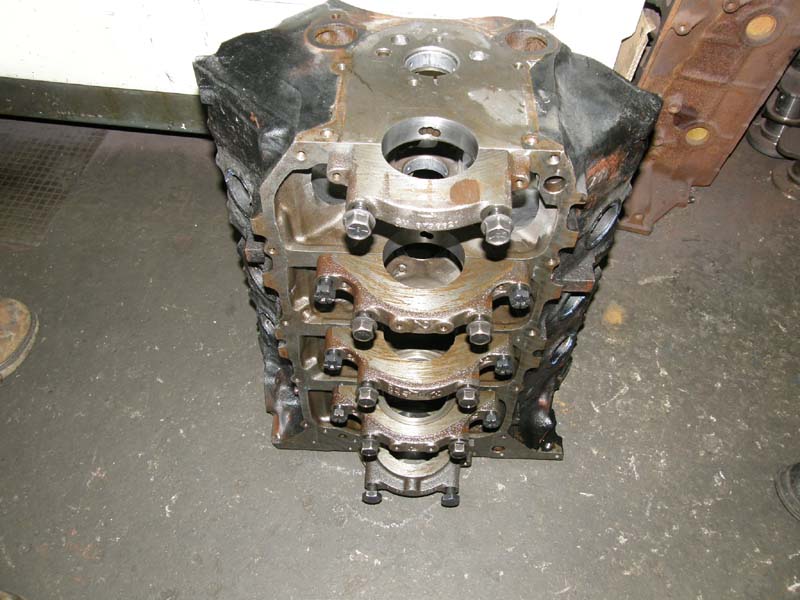

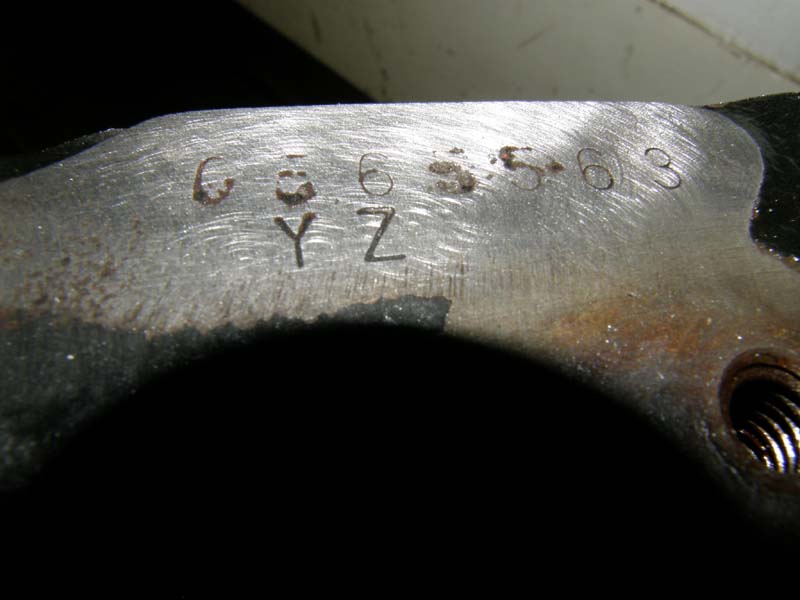

Yes, a Ram Air Three, four bolt main |
 |
The block has been deck, line bored
and honed. |
 |
 |
|
The block has ben line boared |
 |
 |
 |
Cylinders have been honed |
|

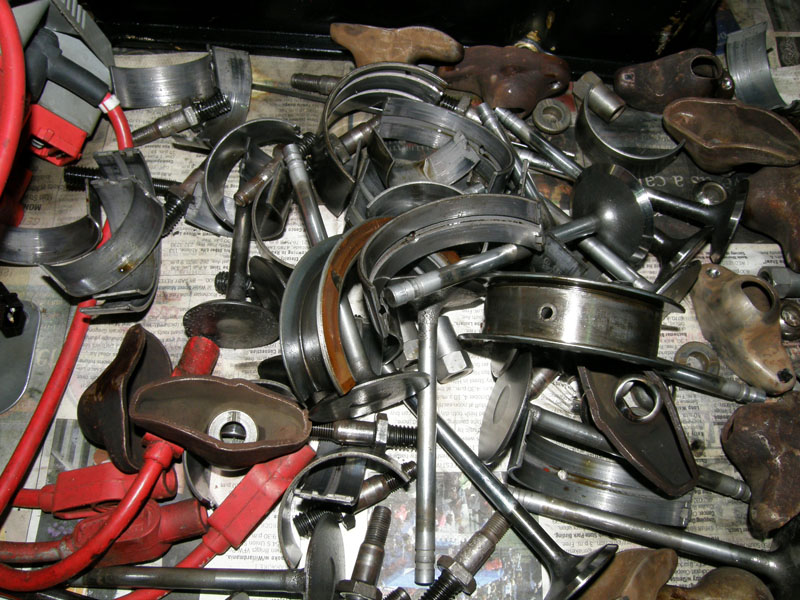

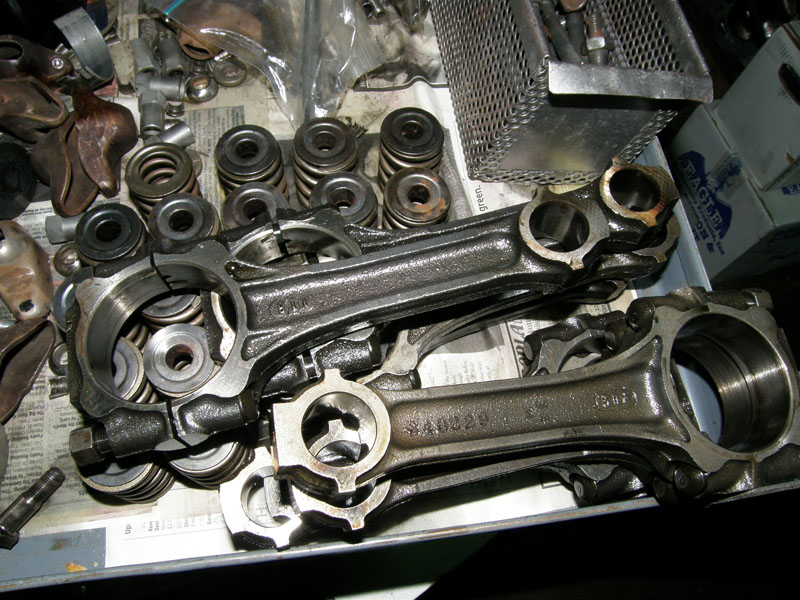

Below are all excess parts, that is
they are all being replaced with new better, stroger parts. |
 |
 |
 |
After much encouragement I ordered
forged rods. It turns out that the rod bearings were too small for
the forged rods. They would have been too small for the cast rods
that were in the engine also. The bearings that were in the engine
were Federal-Mogul and replacement bearings were also federal-Mogul.
So what do we do? We shorten the rod end, bolt the rod caps back on
and then bore and hone the new hole to the correct size.
Click the picture for Details |
 |

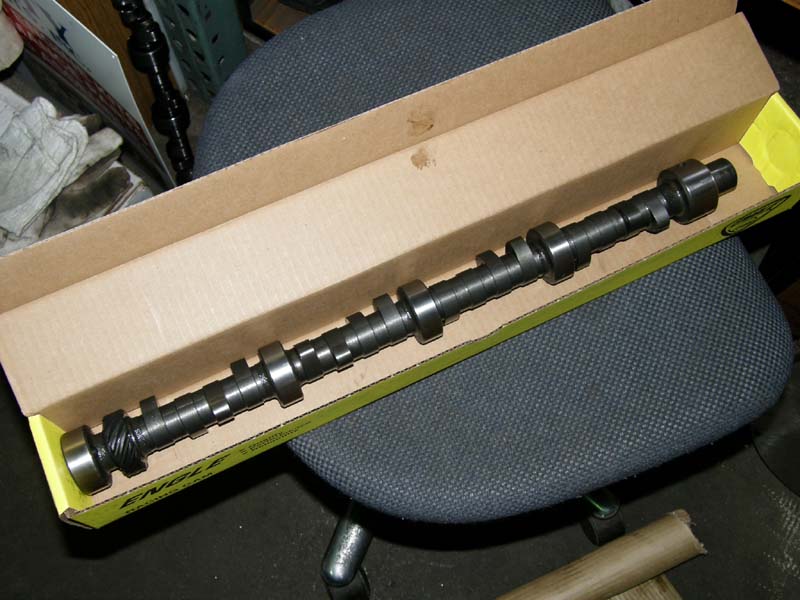

The cam is installed |
 |
Forged pistons 30 over |
 |
Timing chain is installed |
 |
I have three intakes to
choose from. Click here for the detail |
 |
Time to put the
pieces together. Click here for more |
 |
Time to start to see if it
was all worth it. Click here
|
